Time Series Employment Analysis of NAICS

Project Overview

The North American Industry Classification System (NAICS) is an industry classification system developed by the statistical agencies of Canada, Mexico and the United States. NAICS is designed to provide common definitions of the industrial structure of the three countries and a common statistical framework to facilitate the analysis of the three economies.

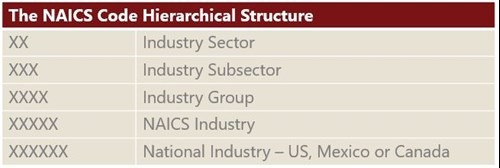

Following chart gives the analysis of NAICS codes:

For this project prepared data using the following files

  1. NAICS 2017 – Statistics Canada: This file contains all the NAICS codes for the respective sectors and subsectors and their descriptions.

  2. Raw Data: 15 CSV files and the file name beginning with word "RTRA". These files contain employment data by industry at different level of aggregation; 2-digit NAICS, 3-digit NAICS, and 4-digit NAICS. Columns mean as follows:

    1. SYEAR: Survey Year

    2. SMTH: Survey Month

    3. NAICS: Industry name and associated NAICS code in the bracket

    4. _EMPLOYMENT_: Employment

  3. LMO Detailed Industries by NAICS: An excel file for mapping the RTRA data to the desired data. The first column of this file has a list of 59 industries that are frequently used. The second column has their NAICS definitions. Using these NAICS definitions and RTRAdata, you would create a monthly employment data series from 1997 to 2020 for these 59 industries.

  4. Data Output Template: An excel file for the analysis output with an empty column for employment.

Preparing Data

Loading and exploring the LMO_Detailed_Industries_by_NAICS data.

%matplotlib inline
import pandas as pd
import numpy as np
import seaborn as sns
import matplotlib.pyplot as plt

# Loading LMO_Detailed_Industries_by_NAICS data
lmo_detailed_industries_data = pd.read_excel('LMO_Detailed_Industries_by_NAICS.xlsx')

# create a list of NAICS for industries
naic_lists = lmo_detailed_industries_data['NAICS'].astype(str).str.replace(' &', ',').str.split(', ')
lmo_detailed_industries_data['NAICS_list'] = naic_lists

2-Digit NAICS Industries data:

Get the data of 2-digit NAICS industries from the Raw data.

# Get the data of 2digit NAICS industries
dataframe_2_naics = pd.read_csv('RTRA_Employ_2NAICS_00_05.csv')

file_2_naics = ['RTRA_Employ_2NAICS_06_10.csv',

for file_p in file_2_naics:
    df = pd.read_csv(file_p)
    dataframe_2_naics = dataframe_2_naics.append(df, ignore_index=True)

# Append the lower_code and upper_code columns to the 2digits NAICS dataframe
dataframe_2_naics["lower_code"] = df1["lower_code"]
dataframe_2_naics["upper_code"] = df1["upper_code"]

Created a function to get the 'LMO_Detailed_Industry' values for a NAICS code in RTRA files:

# Function to get the 'LMO_Detailed_Industry' values for a NAICS code in RTRA files
def add_lmo_industry(df):
    lmo_df = lmo_detailed_industries_data.apply(lambda y: y["LMO_Detailed_Industry"]
                                                if ((df['lower_code'] in y['NAICS_list']) or (df['upper_code'] in y['NAICS_list']))
                                                else np.nan, axis=1)
    lmo_df = lmo_df.dropna(how='all', axis=0)
    if lmo_df.empty:
        lmo_df = np.nan
        lmo_df = lmo_df.to_string(index=False)
    return lmo_df

Using the above function get the corresponding 'LMO_Detailed_Industry' values for 2-digit NAICS dataframe

# Get the LMO_Detailed_Industry for the 2digit NAICS RTRA file
dataframe_2_naics["LMO_Detailed_Industry"] = dataframe_2_naics.apply(add_lmo_industry, axis=1)

Similarly got the 'LMO_Detailed_Industry' values for 3-digit and 4-digit NAICS codes in RTRA files.

3-Digit NAICS Industry data:

# Get the data of 3-digit NAICS industries
dataframe_3_naics = pd.read_csv('RTRA_Employ_3NAICS_00_05.csv')

file_3_naics = ['RTRA_Employ_3NAICS_06_10.csv',

for file_p in file_3_naics:
    df = pd.read_csv(file_p)
    dataframe_3_naics = dataframe_3_naics.append(df, ignore_index=True)

# Separate the Industry description and NAICS code
df1 = pd.DataFrame(dataframe_3_naics['NAICS'].str.split('[').tolist(), columns=["NAICS", "CODE"])
df1["CODE"] = df1['CODE'].str.replace(']', '')

# Maintaining the table consistent as of 2-digit NAICS dataframe
dataframe_3_naics["lower_code"] = df1["CODE"]
dataframe_3_naics["upper_code"] = None

# Get the LMO_Detailed_Industry for the 3-digit NAICS RTRA file
dataframe_3_naics["LMO_Detailed_Industry"] = dataframe_3_naics.apply(add_lmo_industry, axis=1)

4-Digit NAICS Industries data:

# Get the data of 4-digit NAICS industries
dataframe_4_naics = pd.read_csv('RTRA_Employ_4NAICS_00_05.csv')

file_4_naics = ['RTRA_Employ_4NAICS_06_10.csv',

for file_p in file_4_naics:
    df = pd.read_csv(file_p)
    dataframe_4_naics = dataframe_4_naics.append(df, ignore_index=True)

# Maintaning the shape of dataframe_4_naics as of dataframe_2_naics
dataframe_4_naics["lower_code"] = dataframe_4_naics["NAICS"]
dataframe_4_naics["upper_code"] = None

# Get the LMO_Detailed_Industry for the 4-digits NAICS RTRA file
dataframe_4_naics["LMO_Detailed_Industry"] = dataframe_4_naics.apply(add_lmo_industry, axis=1)

Calculating Industry wise Employment Summary

Combining all the 2, 3 and 4 digit NAICS dataframes into a single dataframe and then calculating the month wise employment summary per 'LMO Industry'.

cols = ["SYEAR", "SMTH", "LMO_Detailed_Industry", "_EMPLOYMENT_"]

# Creating a single dataframe with the columns Year, Month and LMO Industry and Employment from all the 2, 3 and 4 digits NAICS
naics_employment_detail_df = dataframe_2_naics[cols]
naics_employment_detail_df = naics_employment_detail_df.append(dataframe_3_naics[cols], ignore_index=True)
naics_employment_detail_df = naics_employment_detail_df.append(dataframe_4_naics[cols], ignore_index=True)

# drop rows with NaN values
naics_employment_detail_df = naics_employment_detail_df.dropna(axis=0, how='any')

# Calculate the Employment summary by Year, Month and LOM Industry
naics_employment_summary = naics_employment_detail_df.groupby(["SYEAR", "SMTH", "LMO_Detailed_Industry"], as_index=False).sum()

Converting the data as per the 'Data_Output_Template' file:

# Read 'Data_Output_Template' file
data_output = pd.read_excel('Data_Output_Template.xlsx')
# Crate Year, Month and LMO_Detailed_industry combined idx to get the data_output formatted result naics_employment_summary1 = naics_employment_summary.copy() naics_employment_summary1['idx'] = naics_employment_summary1["SYEAR"].astype(str) + '-' + naics_employment_summary1["SMTH"].astype(str) + '-' + naics_employment_summary1["LMO_Detailed_Industry"]

data_output1 = data_output.copy()
data_output1['idx'] = data_output1["SYEAR"].astype(str) + '-' + data_output1["SMTH"].astype(str) + '-' + data_output1["LMO_Detailed_Industry"]

# Merge the two dataframes data_output1 and naics_employment_summary1
combined_data = pd.merge(data_output1, naics_employment_summary1, left_on='idx', right_on='idx', how='left')

# Fille tha NaN values with zero in '_EMPLOYMENT_' column
combined_data["_EMPLOYMENT_"] = combined_data["_EMPLOYMENT_"].fillna(0)

# Get the month wise employment summary data into "Employment" column of dat_output dataframe
data_output["Employment"] = combined_data["_EMPLOYMENT_"].astype(

Exploratory Data Analysis

Here for the exploratory data analysis calculated Industry wise the employment summary.

# create a dataframe with industry wise employment summary
industry_wise_summary = data_output.groupby(["LMO_Detailed_Industry"])["Employment"].sum()

Plotting employment wise top 10 industries using bar plot.

# Plotting employment wise top 10 Industries.
plt.title("Employment wise Top 10 Industries Bar plot")
# Create a dataframe with Year and Month as index
month_wise_employment_summary = data_output.copy()
month_wise_employment_summary['month_idx'] = pd.to_datetime([f'{y}-{m}' for y, m in zip(month_wise_employment_summary.SYEAR, month_wise_employment_summary.SMTH)])
month_wise_employment_summary.index = month_wise_employment_summary["month_idx"]

Time series employment in Construction Industry, the top contributor of Employment

Let's plot time series data of the employment in Construction sector evolved overtime.

construction_data = month_wise_employment_summary[month_wise_employment_summary["LMO_Detailed_Industry"] == "Construction"]

construction_data.plot(y="Employment", title="Employment in Constction evolved overtime", figsize=(20,10))
plt.xlabel("Month and Year")

The employment in Construction is rapidly increased from 2004 till the global crisis mid 2008. As the global crisis started there is decline in employment but recently it could able to catch up and now it is the top most industry contributing towards total employment.

Comparing employment in Construction with Total employment across all industries

Let's compare the employment of Construction with Total employment across all industries. Also, let's plot the percentage of employment contributed by Construction sector to the total employment.

total_employment_summary = month_wise_employment_summary.groupby("month_idx")["Employment"].sum()
total_employment_summary = total_employment_summary.reset_index()
# total_employment_summary.head()
sns.lineplot(x="month_idx", y="Employment", data=total_employment_summary, label="Total Employment")
sns.lineplot(x="month_idx", y="Employment", data=construction_data, label="Construction Employment")

# Calculating the percentage of Employment contributed by Construction Industry
construction_perc_df = pd.merge(left=total_employment_summary, right=construction_data, left_on="month_idx", right_on="month_idx", how="left")
construction_perc_df["Employment_perc"] = construction_perc_df["Employment_y"] / construction_perc_df["Employment_x"] * 100

sns.lineplot(x="month_idx", y="Employment_perc", data=construction_perc_df)
plt.ylabel("Employment Percentage")
plt.title("Month wise Employment Percentage Contribution by Construction Industry")

More than 11% of employment is contributed by Construction Industry towards total employment every month from 2008 till now.

Subsector Contribution towards Employment of Construction Sector: In this section we can explore all the subsctors contributed towards the employment of Construction sector. We will check year wise and overall contribution of subsectors. The NAICS code of Construction sector is `23`.

# Subsectors contibution towards the Construction Industry Sector
construction_subsector_data = dataframe_3_naics[dataframe_3_naics["lower_code"].str.match(r'23[0-9]') == True]
construction_subsector_summary = construction_subsector_data.groupby(["SYEAR", "NAICS"])["_EMPLOYMENT_"].sum()
construction_subsector_summary = construction_subsector_summary.reset_index()

sns.barplot(x="SYEAR", y="_EMPLOYMENT_", hue="NAICS", data=construction_subsector_summary)
plt.title("Year wise employment contribution by Subsector of Construction Sector")

# Subsectors contibution towards the Construction Industry Sector
construction_subsector = construction_subsector_data.groupby(["NAICS"])["_EMPLOYMENT_"].sum()
construction_subsector = construction_subsector.reset_index()

sns.barplot(x="NAICS", y="_EMPLOYMENT_", data=construction_subsector)
plt.title("Employment contribution by Subsector of Construction Sector")

`Specialty trade contractors[238]` subsector is the largest contributor towards the employment of Construction sector.

Time Series Employment in Food services and drinking places Sector

Food services and drinking places sector is the second largest employment contributor.

food_sector_data = month_wise_employment_summary[month_wise_employment_summary["LMO_Detailed_Industry"] == "Food services and drinking places"]

food_sector_data.plot(y="Employment", title="Employment in Food services and drinking places Sector evolved overtime", figsize=(20,10))
plt.xlabel("Month and Year")

Contribution of Employment by Food services and drinking places Sector

# Calculating the percentage of Employment contributed by Food services and drinking places Sector
food_sector_perc_df = pd.merge(left=total_employment_summary, right=food_sector_data, left_on="month_idx", right_on="month_idx", how="left")
food_sector_perc_df["Employment_perc"] = food_sector_perc_df["Employment_y"] / food_sector_perc_df["Employment_x"] * 100

sns.lineplot(x="month_idx", y="Employment_perc", data=food_sector_perc_df)
plt.ylabel("Employment Percentage")
plt.title("Month wise Employment Percentage Contribution by Food services and drinking places Sector")

The contribution of Food services and drinking places Sector towards total employment is highly fluctuating between 7.5 to 9%.

Subsector Contribution towards Employment of Food services and drinking places

The NAICS code of Food services and drinking places sector is `722`.

# Subsectors contibution towards the Food services and drinking places Sector
food_subsector_data = dataframe_4_naics[dataframe_4_naics["NAICS"].astype(str).str.match(r'722[0-9]') == True]
food_subsector_summary = food_subsector_data.groupby(["NAICS"])["_EMPLOYMENT_"].sum()
food_subsector_summary = food_subsector_summary.reset_index()
