Analysis of US Presidential Elections-2020

The United States(US) is the only country with a continuous democracy for more than 200years. However, the US is more accurately defined as a constitutional republic. “Constitutional” refers to the fact that the government in the US is based on a Constitution, which is the supreme law of the US. The US elects its president every four years. The most recent election is the 2020 elections, which generated a lot of attention around the world. Although every citizen, who is eligible can vote, a presidential candidate needs 270 electoral college votes to win the presidency. There are two major parties in the US; Republican party and Democrat party. The current president is Joe Biden, a Democrat won with 279 electoral college votes. The former president, Donald Trump is a Republican, while his predecessor, Barack Obama is a Democrat. Analysis Performed analysis on US election results data and made some EDA of the total votes distribution among candidates, parties and counties.

df_president = pd.read_csv("president_county_candidate.csv")
max_voted_candidate = df_president.groupby('candidate')['total_votes'].sum()
top_5_candidates = max_voted_candidate.sort_values(ascending=False)[:5].reset_index()
plt.figure(figsize=(10,5))['candidate'], top_5_candidates['total_votes'], color=[ 'green', 'blue', 'cyan', 'yellow', 'red'])
plt.ylabel("Total Votes")
plt.xlabel("President Candidates")
plt.title("Top 5 President Candidates with max votes")

US Voting Results

The following code snippet and map shows that state wise total number of votes polled.

df_president_states = pd.read_csv("president_state.csv")
state_codes = pd.read_csv('world_country_and_usa_states_latitude_and_longitude_values.csv')
df_state_votes = df_president_states.merge(state_codes, left_on='state', right_on='usa_state')
fig = px.choropleth(df_state_votes,
                    range_color=(0, 10000000),
                    locationmode = 'USA-states',
                    title='USA Presidential Votes Counts'

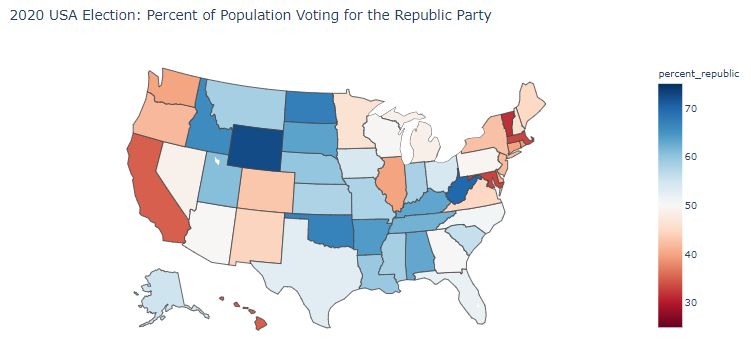

2020 USA Election: Vote Percentages by State

In this section considered only Democrat and Republic votes for the visualization purpose.

democrat = df_president['party'] == 'DEM'
republican = df_president['party'] == 'REP'
df_president_county = df_president[democrat|republican]
df_president_county = df_president_county.groupby(['state','party'])['total_votes'].sum()
df_president_county = df_president_county.unstack()
df_president_county = df_president_county.reset_index()

df_president_county = df_president_county.merge(state_codes, left_on='state', right_on='usa_state')
df_president_county['percent_republic'] = df_president_county['REP']*100/(df_president_county['REP']+df_president_county['DEM'])

fig = px.choropleth(df_president_county,
                    color = "percent_republic",
                    locationmode = 'USA-states',
                    color_continuous_scale = 'RdBu',
                    title="2020 USA Election: Percent of Population Voting for the Republic Party"

States with highest number of county but Republicans got less wins

Here we look into the states which has highest number of county but Republicans got very less wins. This are the some of the counties which made the difference.

df_state_county = df_president.groupby('state')['county'].nunique()
df_president_county = df_president[democrat|republican]
df_president_county = df_president_county.groupby(['state','party'])['won'].sum()
df_president_county = df_president_county.unstack()
df_president_county = df_president_county.reset_index()
df_president_county = df_president_county.merge(df_state_county, on='state')
df_president_county['diff_county'] = df_president_county['DEM'] - df_president_county['REP']
df_president_county.sort_values(by=['diff_county', 'county'], ascending=[0, 0]).head(5)

The Republican party has got very less wins in Massachusetts, Vermont and Connecticut states which are having highest number of counties.

States with max county which made the difference

df_president_county.sort_values(by=['diff_county', 'county'], ascending=[1, 0]).head(5)

The Democratic party got very less wins in the Texas, Kentucky, Missouri, Georgia and Kansas states which are having highest number of counties, which made the difference.


Both Republican and Democratic parties have very less votes different. The results shows that a great victory for Joe Biden, a Democrat with 279 electoral college votes. The number of votes polled made a history.
